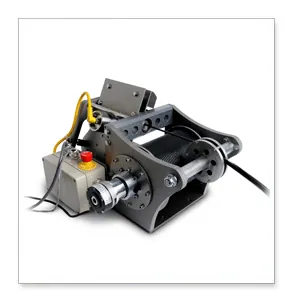

Standard DC Electric

Winches & Hoists

Allied Power Products, Inc. offers a comprehensive line of products to meet you application requirements. Whether lifting or pulling, the 12 VDC or 24 VDC power options allow for installation where fixed power sources may not be available.

To discuss project specifics or request a quote contact us at (503) 626-0654.

WARN DC Electric Hoists and Winches





Custom DC Electric

Winches & Hoists

If a stock unit does not meet your needs we have the ability to modify a standard model or design and manufacture a completely custom product for your application. Regardless of what your DC Electric requirements may be, we are ready to assist.






Available Options Include

Traction drives

AutoAdvance Line Spoolers

Trolley systems

Multiple brakes

Custom drum sizes

Drum grooving

Freespool

Load limiting

Multi-drum interlocks

Travel limiting devices

Variable speed controls

Multiple control stations

Local or remote controls

Cable tensioners

Fairleads

Ratchet & pawls

Mounting brackets

Strap drum conversions




DC Electric Units In Use

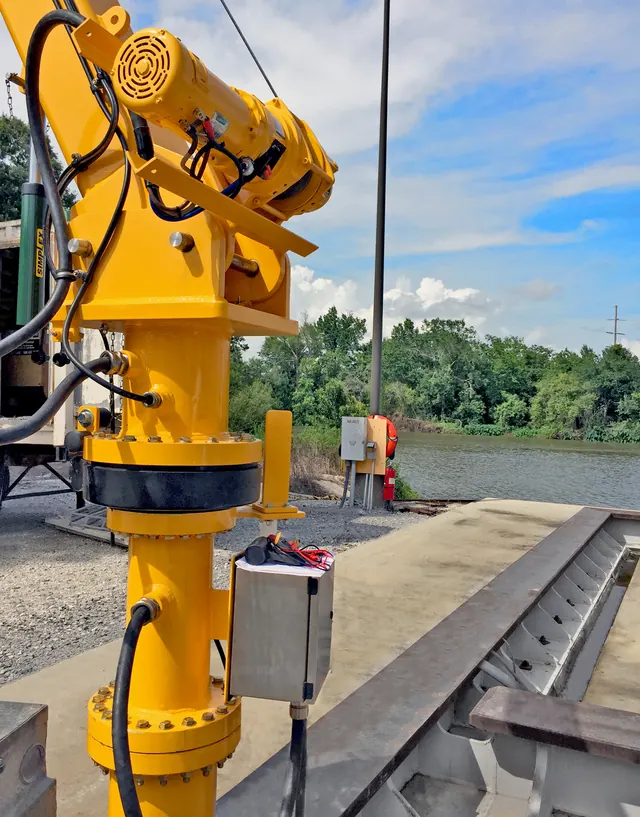

Columbia Continuous Duty DC Hoist Lifts Tools and Equipment

Application:  Hoisting crane operator’s tools and equipment on an oil platform
Customer:  Oil States Skagit Smatco LLC
Location:  Houma, LA
Hoist Model:  Columbia HF1500-2D18-F-00
Line Pull:  1,500 pounds on the first layer
Line Speed:  20 feet per minute on the first layer
Power Source:  24 VDC
Special Features:  1 HP totally enclosed fan cooled motor with spring applied, electrically released brake, custom 4.44” wide drum, 118:1 gear reduction, NEMA 4X rated stainless steel enclosure for electrical controls and connections…

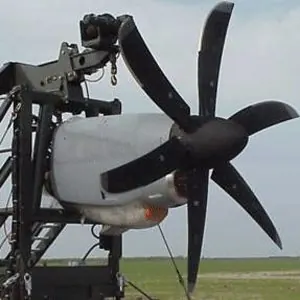

Columbia Test Stand Hoist

Application:  Lifting aircraft engines on a mobile test stand
Customer: Knight Aerospace Products, Inc.
Location:  San Antonio, TX
Hoist Model:  Columbia HR3G-7000-2D18-X
Line Pull:  7,000 pounds on the first layer
Line Speed: 4 feet per minute on the first layer
Power Source:  24 VDC
Special Features:  Drum sleeve grooved for 12mm diameter wire rope, 1 HP motor and spring applied, electrically released brake…

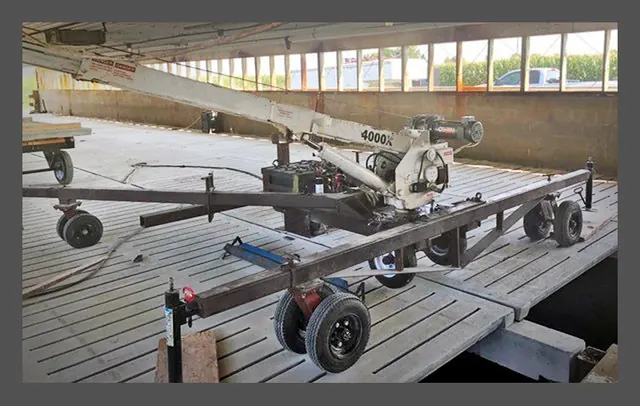

Columbia DC Hoist Helps Give Pigs Firm Footing

Application:  Columbia DC hoist for replacing flooring in large pig barns
Customer:  Arnold Family Farms, Inc.
Location:  Bluff Springs, IL
Hoist Model:  Columbia HG1500-1D35-X-00
Line Pull: 1,500 pounds on the first layer
Line Speed: 16 feet per minute on the first layer
Power Source: 12 VDC
Special Features: Continuous duty motor…
