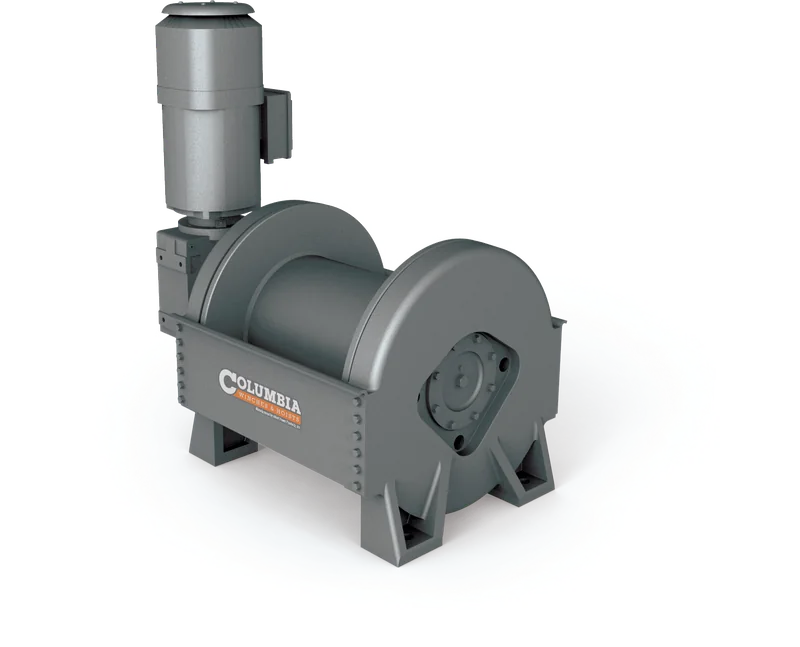

Columbia AC Electric Hoist
HV Series AC Electric Hoists (to 28,000 lbs)
High lifting capacity in an efficient, robust package: up to 28,000 lbs on a single line, with a choice of standard drum sizes. Pair it with an AutoAdvance line spooler, hammerhead trolley, cable tensioner or our electric controls. Designed and built to order in Oregon since 1983.
Standard Features
- Designed to meet ANSI B30.7
- Rated for vertical lifting
- Spring-applied, electrically released brake
- Totally enclosed planetary geartrain in an oil bath
- Severe-duty motors
- Motor rotates in 90° increments
- Simple bolted base-mount installation
Available Options
- AutoAdvance line spoolers — keep rope spooling evenly on the drum
- Hammerhead trolleys — travel the load along a beam
- Cable tensioners — hold tension on slack rope
- Electric controls — several electric control options for your power supply
- Custom configurations — drums, mounting and controls engineered for your application
Performance
Intermittent duty. Line pull in lbs / line speed in FPM at the first layer, mean drum and full drum. All models are 3Ø, 230/460 V.
| Model | HP | Phase | First layer | Mean drum | Full drum | Quote |
|---|---|---|---|---|---|---|
| 10.0 | 3Ø | 22,000 / 13.3 | 17,276 / 14.5 | 15,112 / 19.3 | Quote HV22000 10 HP→ | |
Wire rope1" 6×19 class · MBS 103,400 lbs -01 drum · standard915 ft -02 drum1,453 ft Rope length and travelSize it in the selectorEnter your travel to see the working layer, rope length and controls. Manual, flier and partsNeed a drawing or document for an older unit? Email info@alliedpower.com with the serial number. HV22000 · 10.0 HP | ||||||
| 15.0 | 3Ø | 25,000 / 17.1 | 19,631 / 18.7 | 17,173 / 24.9 | Quote HV25000 15 HP→ | |
Wire rope1" 6×19 class · MBS 103,400 lbs -01 drum · standard915 ft -02 drum1,453 ft Rope length and travelSize it in the selectorEnter your travel to see the working layer, rope length and controls. Manual, flier and partsNeed a drawing or document for an older unit? Email info@alliedpower.com with the serial number. HV25000 · 15.0 HP | ||||||
| 20.0 | 3Ø | 28,000 / 19.7 | 21,987 / 21.5 | 19,234 / 28.7 | Quote HV28000 20 HP→ | |
Wire rope1" 6×19 class · MBS 103,400 lbs -01 drum · standard915 ft -02 drum1,453 ft Rope length and travelSize it in the selectorEnter your travel to see the working layer, rope length and controls. Manual, flier and partsNeed a drawing or document for an older unit? Email info@alliedpower.com with the serial number. HV28000 · 20.0 HP | ||||||
Drum and wire rope capacity
| Drum | Typical weight | 7/8" rope | 1" rope |
|---|---|---|---|
| -01 | 2,800 lbs | 1,410 ft | 915 ft |
| -02 | 2,100 lbs | 2,235 ft | 1,453 ft |
Capacities above are for the standard sizes listed on the spec sheet. Special-order sizes are available on request; the Winch & Hoist Selector sizes the drum for any of them.
Winch & Hoist Selector
Size it in the Winch & Hoist Selector
Enter the load, speed and lift height. The selector shows layer-by-layer performance, the rope that fits and the controls available for your power.
Open the selectorDownloads & Engineering Resources
Spec sheets and manuals open as PDFs. Need a drawing or 3D model for a specific configuration? Email info@alliedpower.com.
Quote an HV
Tell us the load, lift speed, lift height and power available.
