W2G Series AC Electric Winches
The W2G Series AC electric winches deliver our highest pulling capacity, with specific models rated to pull up to 11,000 pounds on a single line while reaching maximum speeds up to 40 feet per minute on the full drum. Columbia products feature a lightweight, compact package that will help maximize real estate in the workspace.
Options for W2G Series AC electric winches include AutoAdvance line spoolers, cable tensioners, and a variety of electric control options. Our winch systems offer customization options to meet the exact specifications and demands of any application.
Allied Power Products, Inc. manufactures Columbia winches and hoists, and has been providing specialized systems to commercial, industrial, and government users for more than 30 years. Contact us today for a solution to your application needs.
Features
- Rated for pulling
- Automatic braking system
- Totally enclosed geartrain
- Three stage planetary reduction
- TEFC UL-listed brakemotors
- Simple installation at any angle
Questions?
Legacy Models
Looking for information on our previous generation winches? While we recommend the W2G Series for new installations, we maintain support for our legacy equipment:
- WG Series Electric Winches (Legacy) – Documentation for installed WG Series winches
- WF Series Electric Winches (Legacy) – Documentation for installed WF Series winches
Our commitment to product support means we continue to provide maintenance assistance, parts (when available), and technical guidance for all Columbia products throughout their service life.
| Model | Motor | Power Input | Gear Ratio | Calculated Performance | |||||||
| First Layer | Mean Drum | Full Drum | |||||||||
| HP | RPM | Voltage | Ø | LBS | FPM | LBS | FPM | LBS | FPM | ||
| W2G11000 | 3.0 | 1725 | 230/460 | 3Ø | 266:1 | 11,000 | 7.5 | 8,250 | 9.8 | 6,710 | 11.9 |
| W2G7400 | 2.0 | 1725 | 115/230 | 1Ø | 266:1 | 7,400 | 7.5 | 5,550 | 9.8 | 4,514 | 11.9 |
| 230/460 | 3Ø | ||||||||||
| W2G5600 | 1.5 | 1725 | 115/230 | 1Ø | 266:1 | 5,600 | 7.5 | 4,200 | 9.8 | 3,416 | 11.9 |
| 230/460 | 3Ø | ||||||||||
| W2G3800 | 1.0 | 1725 | 115/230 | 1Ø | 266:1 | 3,800 | 7.9 | 2,850 | 10.2 | 2,318 | 12.5 |
| 230/460 | 3Ø | ||||||||||
| W2G5500 | 3.0 | 3450 | 230/460 | 3Ø | 266:1 | 5,500 | 14.9 | 4,125 | 19.4 | 3,355 | 23.7 |
| W2G3700 | 2.0 | 3450 | 115/230 | 1Ø | 266:1 | 3,700 | 14.9 | 2,775 | 19.4 | 2,257 | 23.7 |
| 230/460 | 3Ø | ||||||||||
| W2G2800 | 1.5 | 3450 | 115/230 | 1Ø | 266:1 | 2,800 | 14.9 | 2,100 | 19.4 | 1,708 | 23.7 |
| 230/460 | 3Ø | ||||||||||
| W2G1900 | 1.0 | 3450 | 115/230 | 1Ø | 266:1 | 1,900 | 14.9 | 1,425 | 19.4 | 1,159 | 23.7 |
| 230/460 | 3Ø | ||||||||||
| W2G6600 | 3.0 | 1725 | 230/460 | 3Ø | 159:1 | 6,600 | 12.6 | 4,950 | 16.4 | 4,026 | 20.0 |
| W2G4400 | 2.0 | 1725 | 115/230 | 1Ø | 159:1 | 4,400 | 12.6 | 3,300 | 16.4 | 2.684 | 20.0 |
| 230/460 | 3Ø | ||||||||||
| W2G3400 | 1.5 | 1725 | 115/230 | 1Ø | 159:1 | 3,400 | 12.6 | 2,550 | 16.4 | 2,074 | 20.0 |
| 230/460 | 3Ø | ||||||||||
| W2G2300 | 1.0 | 1725 | 115/230 | 1Ø | 159:1 | 2,300 | 12.6 | 1,725 | 16.4 | 1,403 | 20.0 |
| 230/460 | 3Ø | ||||||||||
| W2G3300 | 3.0 | 3450 | 230/460 | 3Ø | 159:1 | 3300 | 24.9 | 2475 | 32.4 | 2013 | 39.6 |
| W2G2200 | 2.0 | 3450 | 115/230 | 1Ø | 159:1 | 2,200 | 24.9 | 1,650 | 32.4 | 1,342 | 39.6 |
| 230/460 | 3Ø | ||||||||||
| W2G1700 | 1.5 | 3450 | 115/230 | 1Ø | 159:1 | 1,700 | 24.9 | 1,275 | 32.4 | 1,037 | 39.6 |
| 230/460 | 3Ø | ||||||||||
| W2G1200 | 1.0 | 3450 | 115/230 | 1Ø | 159:1 | 1,200 | 24.9 | 900 | 32.4 | 732 | 39.6 |
| 230/460 | 3Ø | ||||||||||
Performance based on intermittent duty cycles
| Drum Size | Wire Rope Capacity | ||
| 1/4″ | 5/16″ | 3/8″ | |
| -01 | 326′ | 228′ | 159′ |
| -02 | 407′ | 285′ | 198′ |
| -03 | 509′ | 356′ | 248′ |
| Model | Phase | Drum | STP | |
|---|---|---|---|---|
| W2G11000 | 3Ø | -1 | STP | |
| W2G11000 | 3Ø | -2 | STP | |
| W2G11000 | 3Ø | -3 | STP | |
| W2G7400 | 1Ø | -1 | STP | |
| W2G7400 | 1Ø | -2 | STP | |
| W2G7400 | 1Ø | -3 | STP | |
| W2G7400 | 3Ø | -1 | STP | |
| W2G7400 | 3Ø | -2 | STP | |
| W2G7400 | 3Ø | -3 | STP | |
| W2G5600 | 1Ø | -1 | STP | |
| W2G5600 | 1Ø | -2 | STP | |
| W2G5600 | 1Ø | -3 | STP | |
| W2G5600 | 3Ø | -1 | STP | |
| W2G5600 | 3Ø | -2 | STP | |
| W2G5600 | 3Ø | -3 | STP | |
| W2G3800 | 1Ø | -1 | STP | |
| W2G3800 | 1Ø | -2 | STP | |
| W2G3800 | 1Ø | -3 | STP | |
| W2G3800 | 3Ø | -1 | STP | |
| W2G3800 | 3Ø | -2 | STP | |
| W2G3800 | 3Ø | -3 | STP | |
| W2G5500 | 1Ø | -1 | STP | |
| W2G5500 | 1Ø | -2 | STP | |
| W2G5500 | 1Ø | -3 | STP | |
| W2G5500 | 3Ø | -1 | STP | |
| W2G5500 | 3Ø | -2 | STP | |
| W2G5500 | 3Ø | -3 | STP | |
| W2G3700 | 1Ø | -1 | STP | |
| W2G3700 | 1Ø | -2 | STP | |
| W2G3700 | 1Ø | -3 | STP | |
| W2G3700 | 3Ø | -1 | STP | |
| W2G3700 | 3Ø | -2 | STP | |
| W2G3700 | 3Ø | -3 | STP | |
| W2G2800 | 1Ø | -1 | STP | |
| W2G2800 | 1Ø | -2 | STP | |
| W2G2800 | 1Ø | -3 | STP | |
| W2G2800 | 3Ø | -1 | STP | |
| W2G2800 | 3Ø | -2 | STP | |
| W2G2800 | 3Ø | -3 | STP | |
| W2G1900 | 1Ø | -1 | STP | |
| W2G1900 | 1Ø | -2 | STP | |
| W2G1900 | 1Ø | -3 | STP | |
| W2G1900 | 3Ø | -1 | STP | |
| W2G1900 | 3Ø | -2 | STP | |
| W2G1900 | 3Ø | -3 | STP | |
| W2G6600 | 1Ø | -1 | STP | |
| W2G6600 | 1Ø | -2 | STP | |
| W2G6600 | 1Ø | -3 | STP | |
| W2G6600 | 3Ø | -1 | STP | |
| W2G6600 | 3Ø | -2 | STP | |
| W2G6600 | 3Ø | -3 | STP | |
| W2G4400 | 1Ø | -1 | STP | |
| W2G4400 | 1Ø | -2 | STP | |
| W2G4400 | 1Ø | -3 | STP | |
| W2G4400 | 3Ø | -1 | STP | |
| W2G4400 | 3Ø | -2 | STP | |
| W2G4400 | 3Ø | -3 | STP | |
| W2G3400 | 1Ø | -1 | STP | |
| W2G3400 | 1Ø | -2 | STP | |
| W2G3400 | 1Ø | -3 | STP | |
| W2G3400 | 3Ø | -1 | STP | |
| W2G3400 | 3Ø | -2 | STP | |
| W2G3400 | 3Ø | -3 | STP | |
| W2G2300 | 1Ø | -1 | STP | |
| W2G2300 | 1Ø | -2 | STP | |
| W2G2300 | 1Ø | -3 | STP | |
| W2G2300 | 3Ø | -1 | STP | |
| W2G2300 | 3Ø | -2 | STP | |
| W2G2300 | 3Ø | -3 | STP | |
| W2G3300 | 1Ø | -1 | STP | |
| W2G3300 | 1Ø | -2 | STP | |
| W2G3300 | 1Ø | -3 | STP | |
| W2G3300 | 3Ø | -1 | STP | |
| W2G3300 | 3Ø | -2 | STP | |
| W2G3300 | 3Ø | -3 | STP | |
| W2G2200 | 1Ø | -1 | STP | |
| W2G2200 | 1Ø | -2 | STP | |
| W2G2200 | 1Ø | -3 | STP | |
| W2G2200 | 3Ø | -1 | STP | |
| W2G2200 | 3Ø | -2 | STP | |
| W2G2200 | 3Ø | -3 | STP | |
| W2G1700 | 1Ø | -1 | STP | |
| W2G1700 | 1Ø | -2 | STP | |
| W2G1700 | 1Ø | -3 | STP | |
| W2G1700 | 3Ø | -1 | STP | |
| W2G1700 | 3Ø | -2 | STP | |
| W2G1700 | 3Ø | -3 | STP | |
| W2G1200 | 1Ø | -1 | STP | |
| W2G1200 | 1Ø | -2 | STP | |
| W2G1200 | 1Ø | -3 | STP | |
| W2G1200 | 3Ø | -1 | STP | |
| W2G1200 | 3Ø | -2 | STP | |
| W2G1200 | 3Ø | -3 | STP |
Columbia WG Series AC Electric Hoists In Use

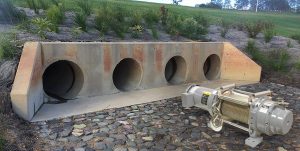

Culvert Resurfacing With A Columbia Winch
Application: Skid-mounted cement sprayer resurfaces culvert linings Customer: Motion Industries Location: Muscle Shoals, AL Winch Model: Columbia WG1600-1A33-L-02 AC Electric Winch Performance based on 115
Columbia Extrusion Machine Winch
Application: Extrusion machine winch Customer: JC Steele & Sons, Inc. Location: Statesville, NC Winch Model: Columbia WG11000-4A17-L-23 AC Electric Strap Winch Performance: Line Pull: 11,000
Columbia Strap Winches Optimize Appliance Manufacturing Processes
Application: Columbia Strap Winches Pull Die In and Out of a Press Customer: Motion Industries Location: Broken Arrow, OK Hoist Model: Columbia AC Electric WG5000-4A34-L-23
