Columbia Retractable Work Platform Hoist

Columbia Retractable Work Platform Hoist

Application: Deploying a barge mounted work platform
Customer: Supreme Integrated Technology, Inc.
Location: Harahan, LA
Hoist Model: Columbia HD1300-1A34-F-11 AC Electric Hoist
Performance based on 115 VAC / Single Phase / 60Hz:
Line Pull: 1,300 pounds on the first layer
Line Speed: 15.4 feet per minute on the first layer
Wire Rope Capacity: 99 feet x 3/16″ diameter wire rope with latching hook

Why APPI:  When Supreme Integrated Technologies was contracted to build a barge-mounted work platform, mechanical engineer Carson Vaccarella turned to Allied Power Products for help with specifying the hoist needed to deploy a folding section of the unit.  Based on the project specifications, it was determined that a Columbia HD1300 was the most practical solution to their needs.

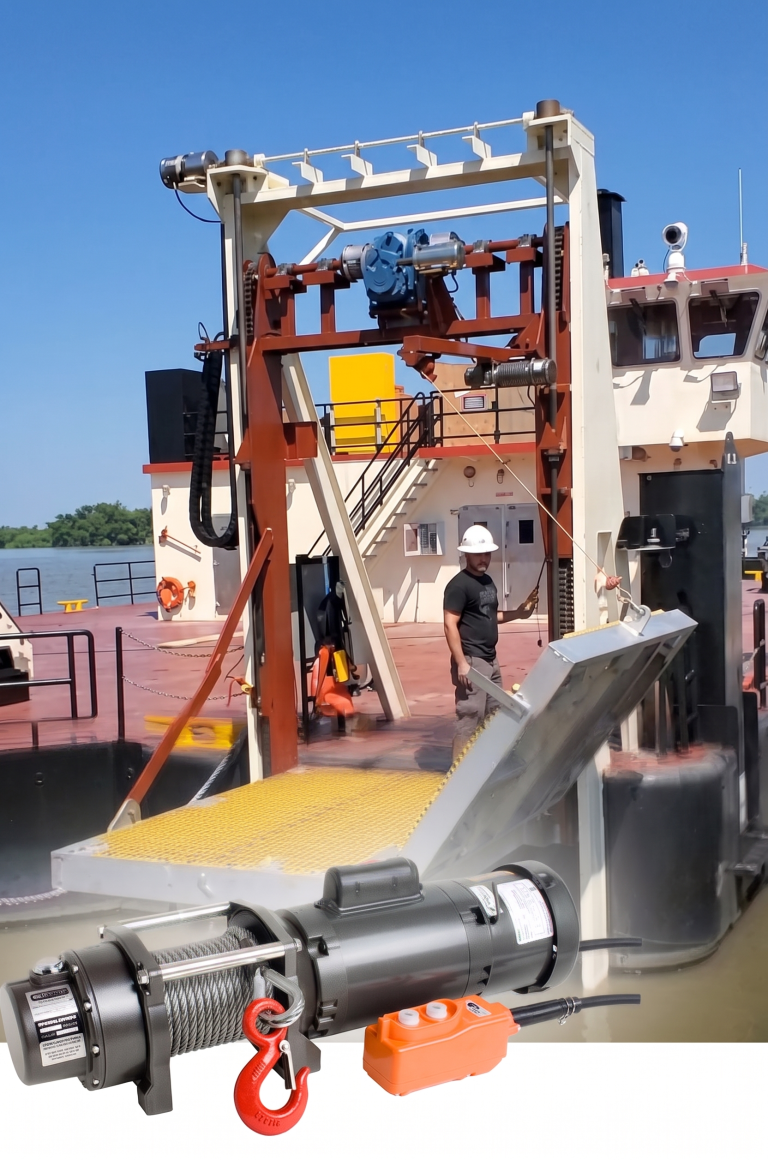

When the platform is deployed, the operator swings out a jib arm with the hoist mounted on it, hooks the load line to the folding section of the platform and lifts it from its stowed position.  The boom is then swung past the center of the hinge on the platform and the platform extension is lowered to expand its working area.  To stow the folding section, the process is reversed and the jib and hoist are secured until needed again.

Using one of our Columbia AC electric hoists mounted on the jib makes this multi-axis lift, tip and lower process very simple.

Please contact us if you would like more information about this particular barge-mounted retractable platform hoist or any of our other products and services.


Allied Power Products, Inc. has specialized in providing winches, hoists, capstans and cranes to meet our customers’ specific application requirements for more than 30 years.
